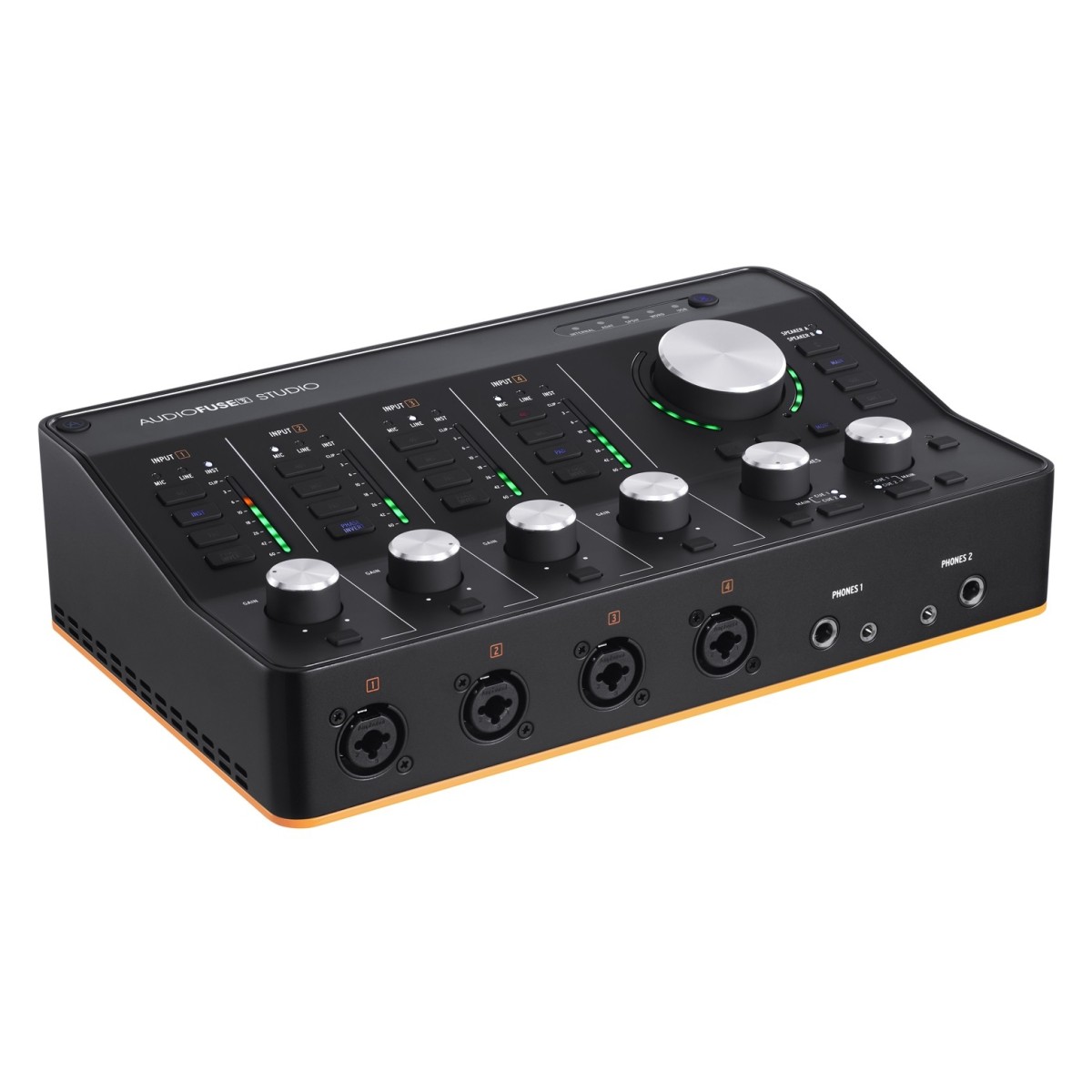

Capture every detail with transparent preamps

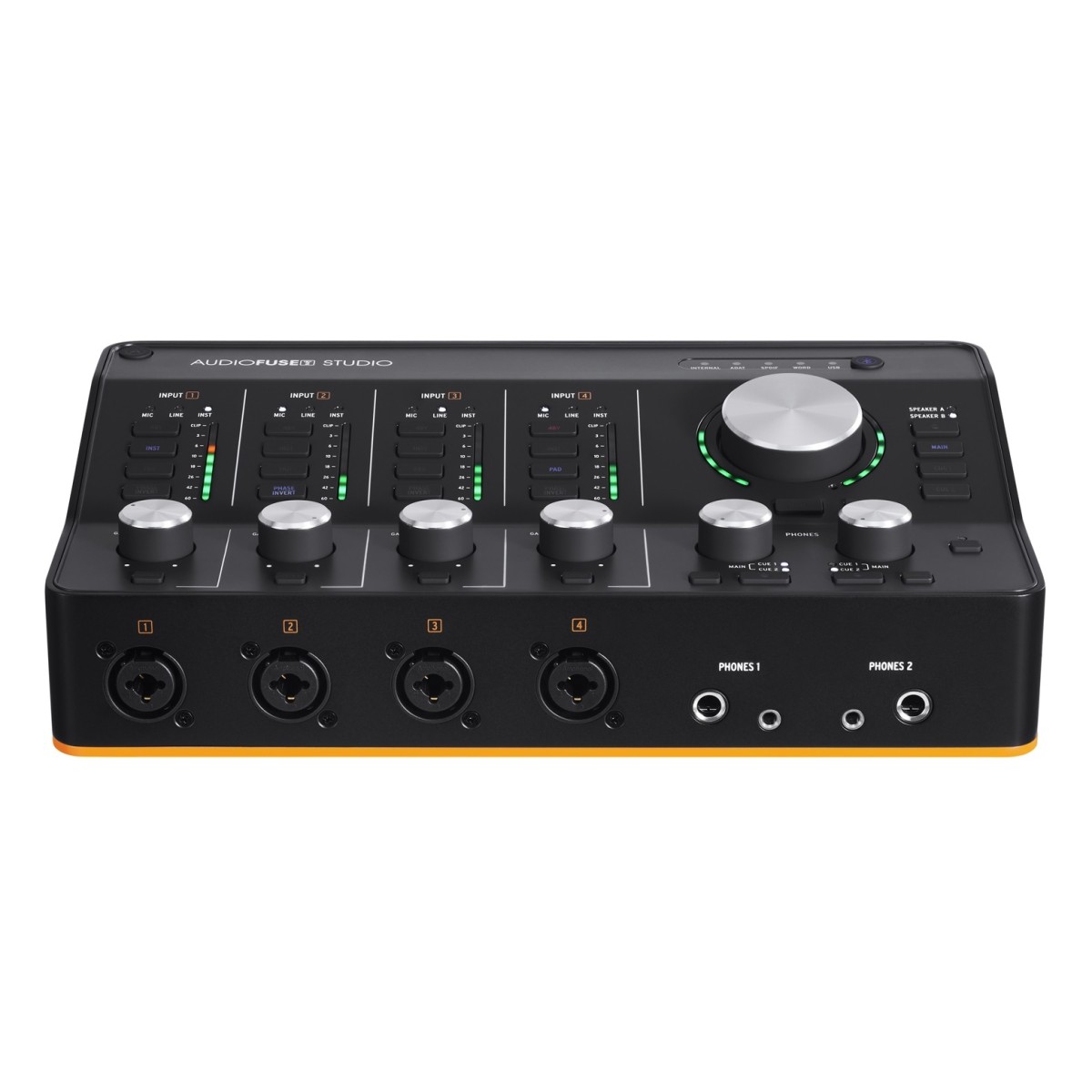

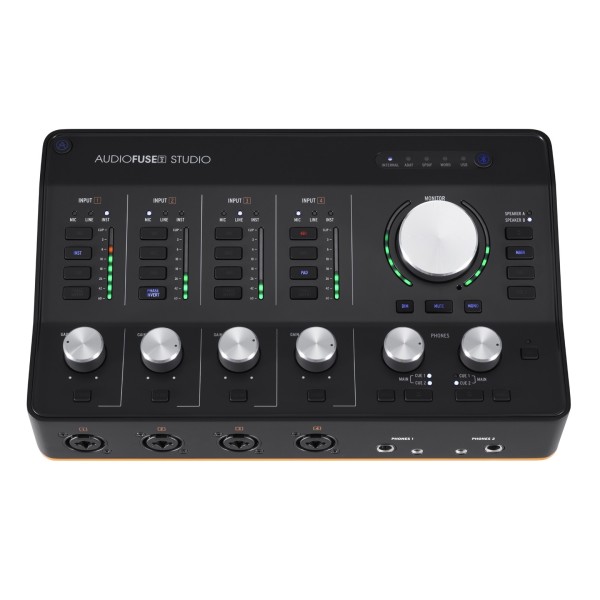

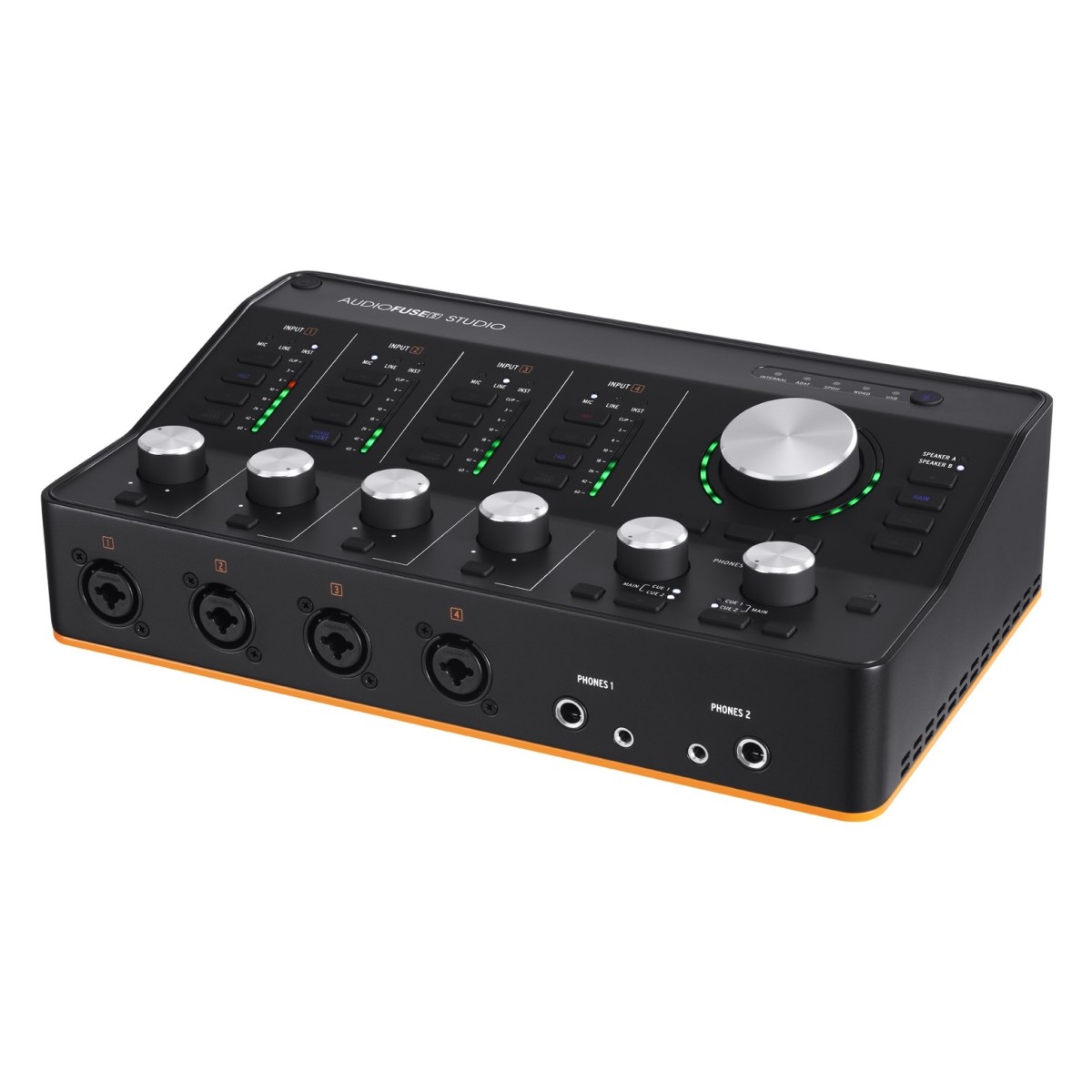

At the heart of AudioFuse Studio Rev 2 are four DiscretePRO preamps designed for accurate, transparent recording. With an extremely low equivalent input noise figure and wide dynamic range, they help preserve the character of microphones, instruments and external sources without adding unwanted colouration.

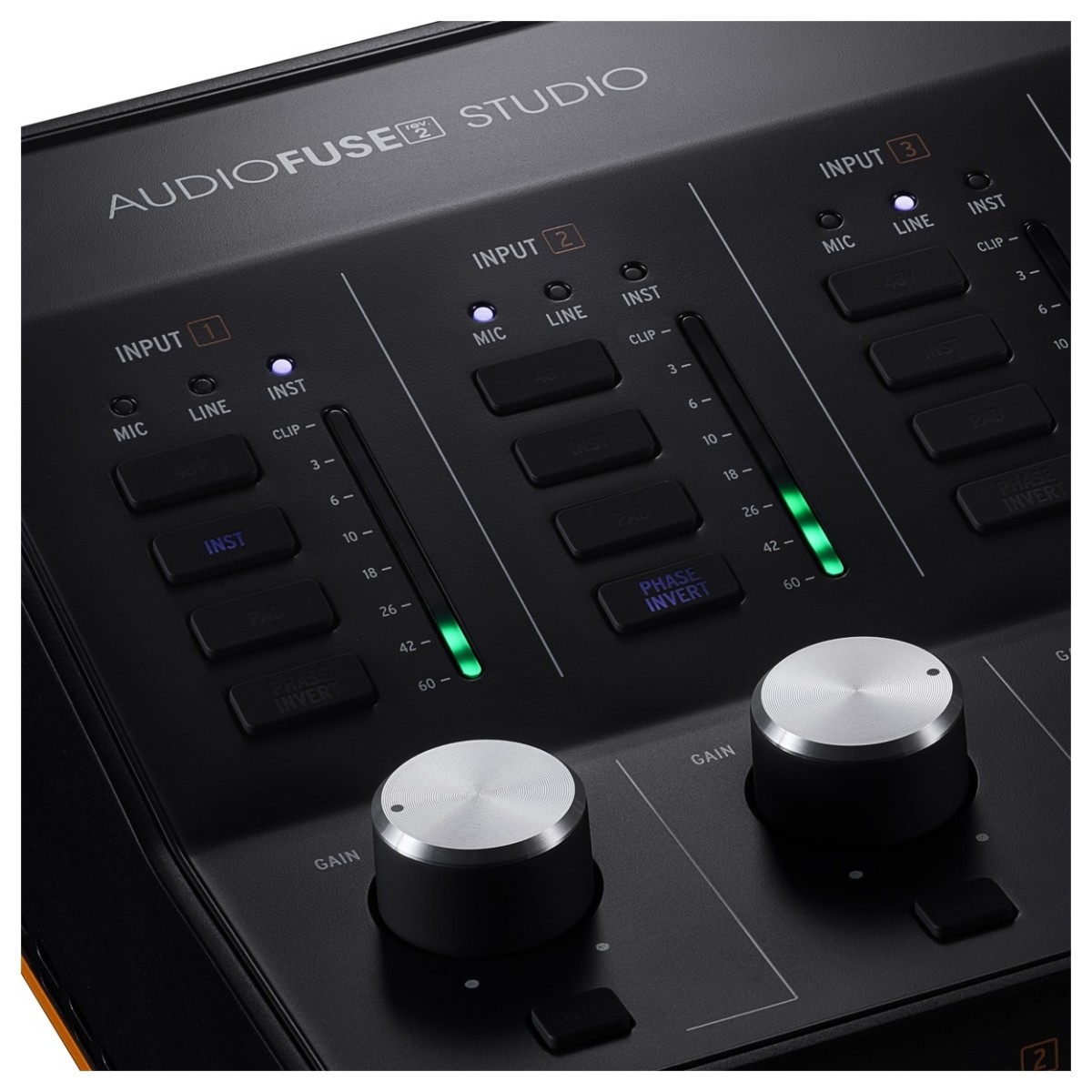

A generous 72dB gain range makes the interface suitable for quieter microphones, including ribbon models that often require additional amplification. Each channel features dedicated hardware controls for fast adjustments during sessions, while built-in analog insert points make it easy to integrate compressors, equalisers and other outboard processors directly into your recording chain. The result is a flexible front end that supports demanding studio work.

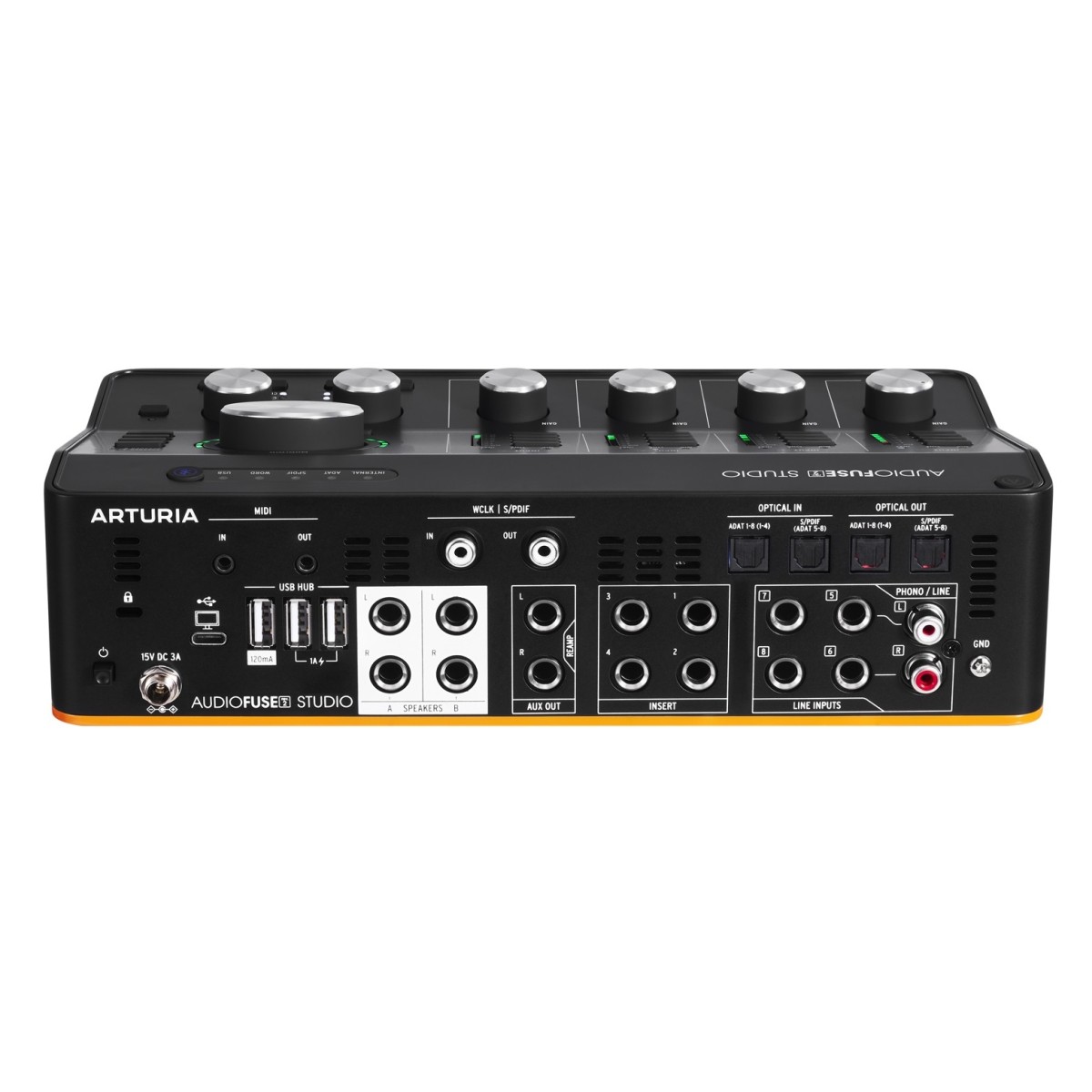

Connect your entire studio with ease

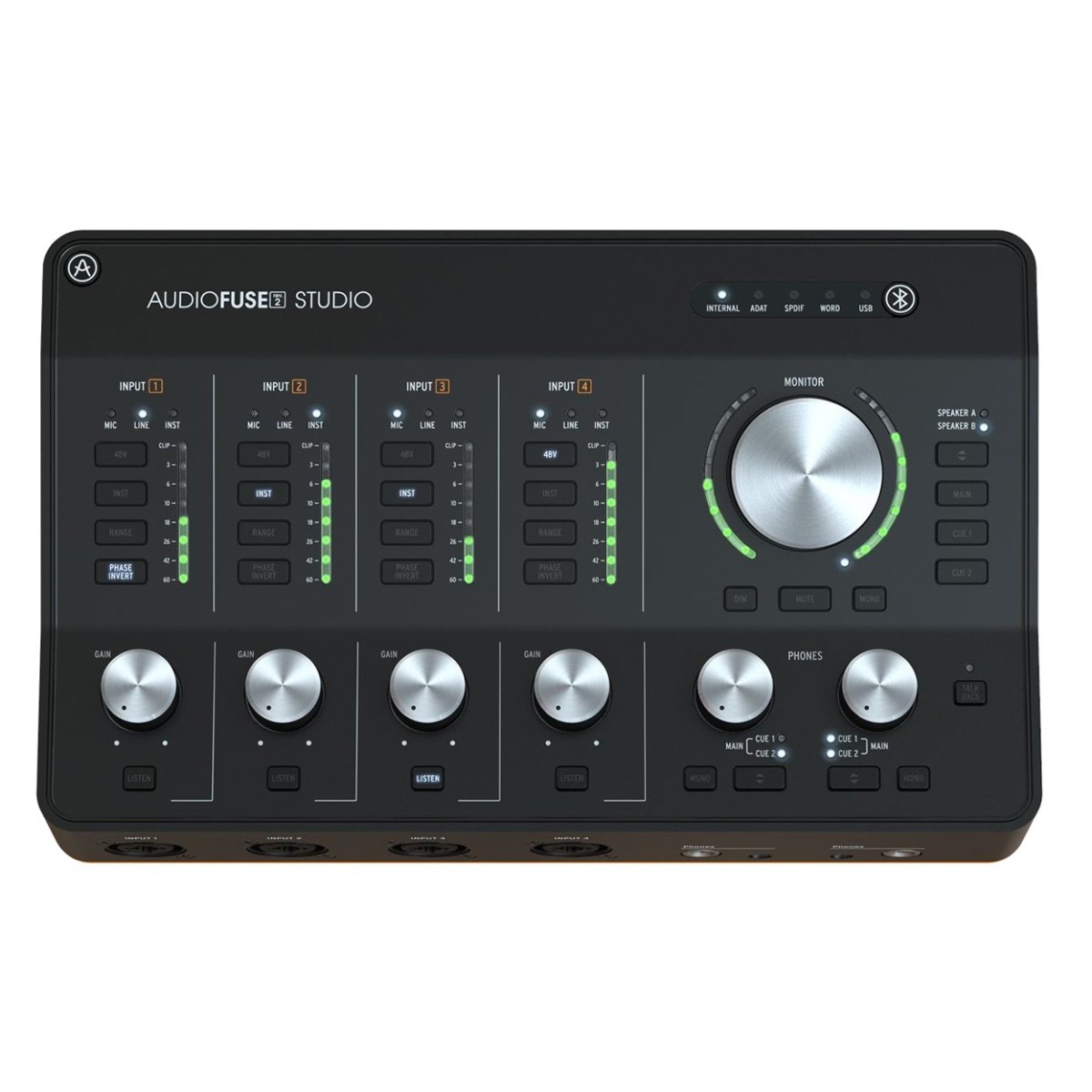

AudioFuse Studio Rev 2 is built to act as the centrepiece of a modern production setup. Four mic, line and instrument inputs are joined by four dedicated line inputs, making it straightforward to keep synthesisers, drum machines and external processors permanently connected.
Beyond the analog connections, the interface supports ADAT expansion, S/PDIF devices, Word Clock synchronisation, MIDI hardware and USB-C integration. The built-in USB hub helps reduce desktop clutter by providing extra connection points for controllers, storage devices and other studio essentials.
Streamline monitoring and reamping workflows

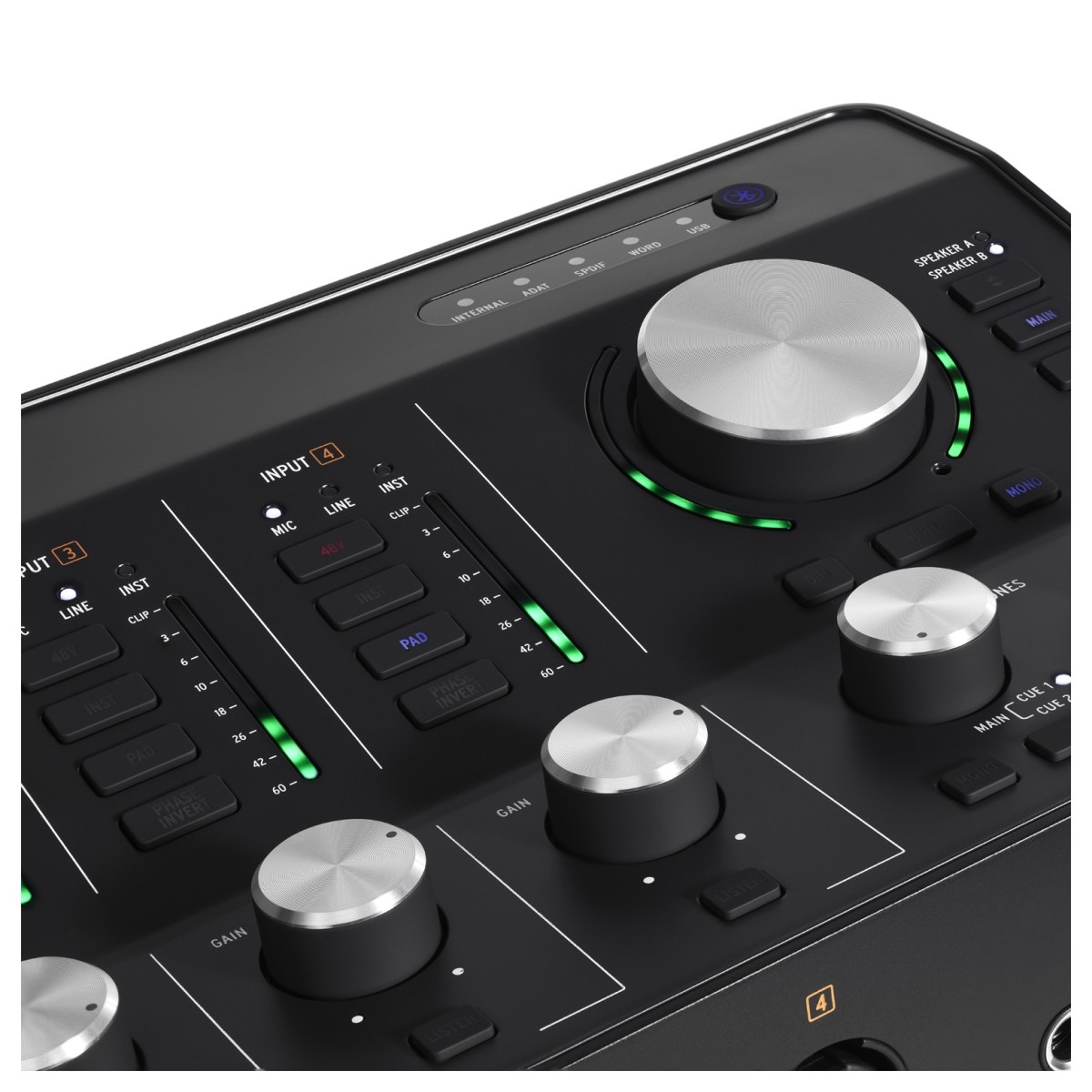

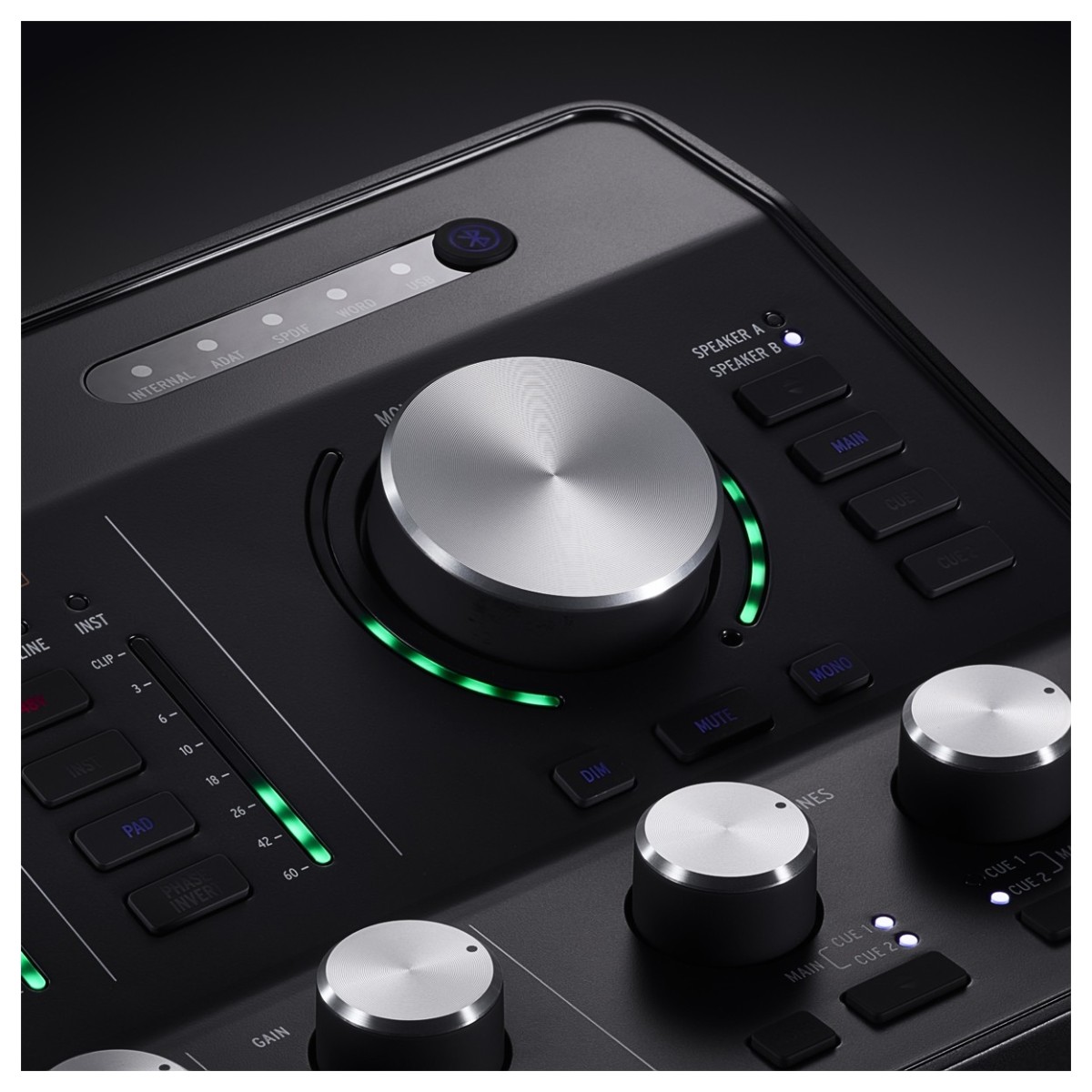

Monitoring options are designed to make day-to-day production more efficient. Two pairs of TRS monitor outputs allow you to connect multiple speaker systems and switch between them when checking how mixes translate across different listening environments. A digital S/PDIF output expands your monitoring possibilities even further.
Twin headphone outputs feature independent controls and metering, making collaborative sessions more practical. Guitarists and producers will also appreciate the dedicated reamping outputs. These allow you to record a clean guitar signal first, then send it back through amplifiers and effects later when refining tones. Input channels 5 and 6 can even accommodate turntables thanks to an integrated RIAA preamp for vinyl playback and sampling.
Create straight away with included software

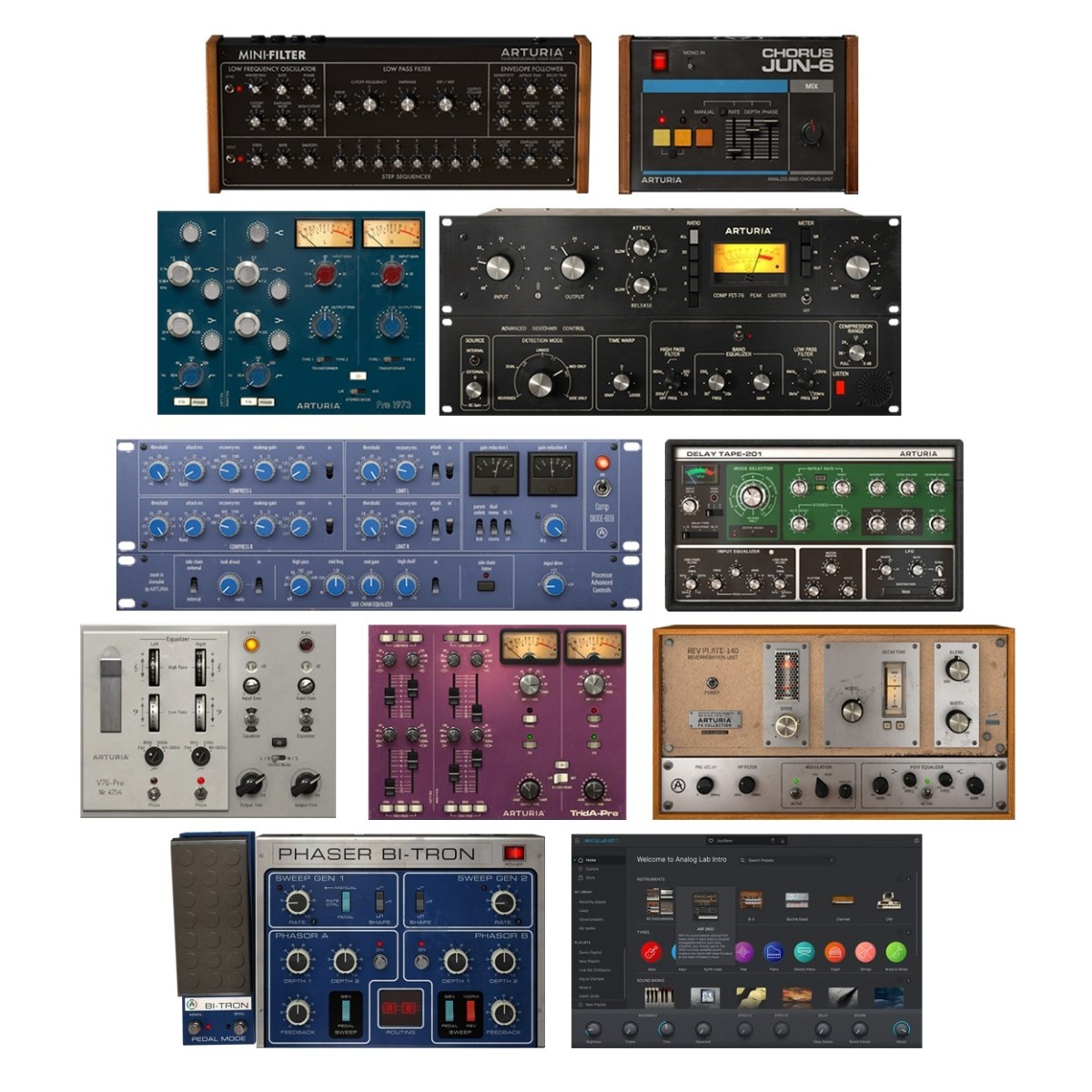

AudioFuse Studio Rev 2 arrives with a comprehensive software bundle designed to support recording, mixing and production. AudioFuse Control Center provides detailed routing control, helping you create submixes and manage the interface's internal configuration. Alongside this, Arturia includes Analog Lab Intro plus a collection of effects drawn from its wider software catalogue. Included plugins include modulation, compression, filtering, delay, preamp emulations and reverb processing, giving you practical tools for shaping tracks immediately after installation.
Features
- Premium desktop audio interface designed for professional recording, mixing and production workflows
- Four advanced DiscretePRO preamps deliver exceptional clarity, wide dynamic range and ultra-low noise performance
- Eight analogue inputs support microphones, instruments, synthesisers and external hardware simultaneously
- Built-in Bluetooth receiver supports high-quality wireless audio playback with modern aptX codecs
- Dedicated reamping outputs make it easy to refine and experiment with guitar and bass tones after recording
- Integrated phono preamp allows direct connection of turntables for vinyl listening and sampling
- Extensive digital connectivity includes ADAT, S/PDIF, Word Clock, MIDI and USB-C expansion options
- Comprehensive monitor management supports multiple speaker pairs and dual independent headphone mixes
- Integrated USB hub adds convenient connections for controllers, drives and studio peripherals
- AudioFuse Control Center software provides flexible routing, submix creation and system configuration
- Creative Suite software bundle includes virtual instruments, effects and production tools for immediate use
Specifications
- Line inputs:
- Input impedance: 20kΩ (symmetric), 10kΩ (asymmetric)
- Maximum input level: +24dBu
- Gain range: 45dB typical
- Pad mode: -20dB
- Frequency response: 20Hz/20kHz +/-0.01dB typical
- Dynamic range: 119dB (A-weighted)
- THD+N: -112dB (A-weighted)
- Instrument inputs:
- Input impedance: 1.1MΩ (asymmetric)
- Maximum input level: +18dBu
- Gain range: 45dB typical
- Pad mode: -20dB
- Frequency response: 20Hz/20kHz +/-0.01dB typical
- Dynamic range: 119dB (A-weighted)
- THD+N: -112dB (A-weighted)
- Line aux inputs:
- Input impedance: 20kΩ (symmetric), 10kΩ (asymmetric)
- Maximum input level: +24dBu
- Pad mode: -20dB
- Frequency response: 20Hz/20kHz +/-0.02dB typical
- Dynamic range: 120dB (A-weighted)
- THD+N: -108dB (A-weighted)
- Microphone preamps:
- Input impedance: 3.4kΩ
- Maximum input level: +11dBu
- Gain range: 71dB typical
- Boost mode: +10dB
- Pad mode: -20dB
- Frequency response: 20Hz to 20kHz +/-0.09dB
- Equivalent input noise (EIN): -129dB typical (un-weighted)
- THD+N @ 1kHz: -107dB (A-weighted)
- Dynamic range: 118dB (A-weighted)
- Input inserts:
- Output impedance: 240Ω balanced, 120Ω unbalanced
- Input impedance: 20kΩ (balanced), 10kΩ (unbalanced)
- Aux / line / speaker outputs:
- Output impedance: 240Ω balanced, 120Ω unbalanced
- Maximum output level: +24dBu
- Dynamic range: 121dB (A-weighted)
- THD+N: -108dB (A-weighted)
- Frequency response: 20-20kHz +/-0.07dB
- Phones outputs:
- Output impedance:
- 10Ω on 6.35mm TRS
- 33Ω on 3.5mm TRS
- Maximum output level:
- +13dBu on 6.35mm TRS
- +10dBu on 3.5mm TRS
- Dynamic range: 103dB (A-weighted)
- THD+N @ 1kHz: -92dB (A-weighted)
- Power @ 33ohm @1%THD:
- 60mW on 6.35mm TRS
- 22mW on 3.5mm TRS
- Talkback microphone:
- Max input level (@440Hz): 95dB SPL
- Dynamic range: 55dB
- Audio bandwidth: 120Hz - 8kHz
- Clocks:
- Supported frequency rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Supported Bluetooth streaming codecs: AAC©, aptX™, mp3, SBC, LDAC
- Dimensions: 265 x 160 x 72.7 mm
- Weight: 1.6 kg
- Product Code: 830102
